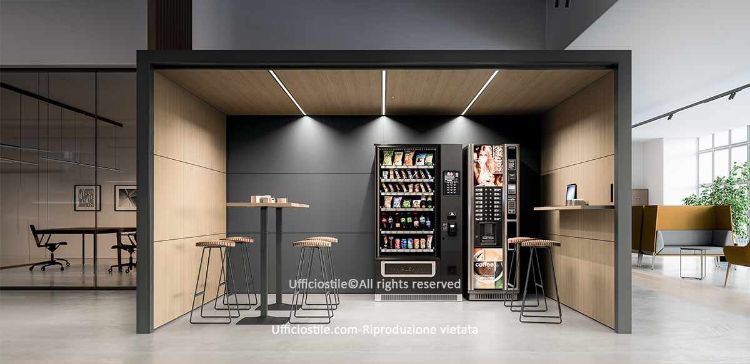

Compact solution with integrated design for the corporate refreshment area.
This module is designed to accommodate snack and beverage vending machines in an organised, ergonomic environment visually coordinated with the office. Installation within a defined technical structure, with internal wood-effect cladding and integrated lighting, transforms a simple refreshment point into a welcoming and functional space.
The rational layout includes a central area equipped for vending machines and two side areas with snack tops and high stools for a comfortable, informal break. An ideal solution for modern offices, waiting rooms, coworking spaces and open-space environments.
MAIN BENEFITS
Organised layout for vending machines and furnishings
Coordinated design that integrates with the office environment
Self-supporting structure, easy to position
User comfort thanks to stools and side support tops
Technical LED lighting integrated into the false ceiling
OFFER COMPOSITION
Modular acoustic booth 4x3 with open structure, without front wall
Supporting structure in painted aluminium
3 sides with closed melamine walls: light wood-effect and anthracite finish
Closed ceiling with integrated sound-absorbing panels
Integrated LED lighting with presence sensor
Side snack shelves in wood-effect melamine
DIMENSIONS
Internal dimensions: 403.4 x 303.4 x 229 h cm
External dimensions: 423.6 x 323.6 x 244 h cm
TECHNICAL FEATURES
Structure
Extruded aluminium 101 x 101 mm
Quick interlocking structural node
Fully open front side for free access
Side and rear walls
18 mm thick melamine – scratch-resistant
1.5 mm thick ABS edges
Class E1 – low formaldehyde emission
Ceiling
Composed of sound-absorbing panels
Wood-effect melamine finish with integrated LEDs
Supporting structure with system access
LIGHTING
4000K LED lighting with microprismatic diffuser
Presence sensor and remote control included
ELECTRICAL SETUP
Optional.
Cable ducts for electrical power supply
Socket options: 230V, USB, RJ45
Side, ceiling or floor installation
ACOUSTIC PERFORMANCE
Insulation: up to 36 dB on closed walls and ceiling
Absorption αw: up to 0.45
Standards: UNI EN ISO 717-1, 3741, 354, 11957
CERTIFICATIONS AND QUALITY
UNI EN ISO 9001 / 14001 / 45001
CE, RoHS, Machinery Directive
FSC® – sustainable wood management
ECOLOGICAL PANEL – 100% recycled material
CARB2 – controlled formaldehyde emissions
SUSTAINABILITY
Production with 1 MW photovoltaic system
Emission reduction: 440 t COâ‚‚ / year
Optimised packaging for eco-responsible transport
MAIN FEATURES
Open and acoustically protected break space
Open side for maximum accessibility, with walls and ceiling for insulation and comfort.
Smart lighting and ventilation
Natural LED light and silent air exchange for a healthy environment.
Modular and integrable design
Ideal for common areas, coworking spaces, waiting areas or corporate lounge rooms.
Ethical and certified production
FSC materials, green production cycle and recycled components.
